Triflex Over the Side Heater

Triflex over the side Immersion heaters are easily installed by laying the heater down on the base of the tank or mounting it on the tank wall. The Triflex heater can be manufactured in steel, stainless steel, or Inconel if required.

The heated element is a 1.90 inch diameter tube. The tube is welded (tig) on both the wet and dry side. NEMA 1-4 and HAZLOC enclosure is available for this heater. Grooves can be machined on the tube to create a larger surface area to lower watt density. Our standard maximum length (B-Dimension) is 96”B dimension.

Trivolt Industries also has two special anti-corrosion treatments specifically for our special designed Triflex heater. One product is TVC-01, a ceramic coating that resists temperatures exceeding 2400 deg F, and our TV-01, and infusion into the steel or stainless against salts, acids or very harsh environments both chemically and mechanically.


OVS 1 Over the side installation wall mounted Stabilizing bracket High limit and process sensors available Different anti-corrosion treatments available See table for material selection Single phase or 3 phase 208 volt up to 600 volt	OVS 2 Over the side lower tank installation Stabilizing bracket High limit and process sensors available Different anti-corrosion treatments available See table for material selection Single phase or 3 phase 208 volt up to 600 volt
OVS 3 3 leg over the side installation wall mounted Stabilizing bracket inside and outside of tank Available with integrated control system for precise temperature ready High limit and process sensors available Different anti-corrosion treatments available See table for material selection Single phase or 3 phase 208 volt up to 600 volt	OVS 4 3 leg over the side lower tank installation Stabilizing bracket inside and outside of tank Available with integrated control system for precise temperature ready High limit and process sensors available Different anti-corrosion treatments available See table for material selection Single phase or 3 phase 208 volt up to 600 volt

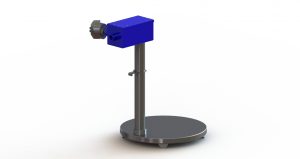

OVS 5 3 leg over the side lower tank installation Stabilizing bracket inside and outside of tank Available with integrated control system for precise temperature ready High limit and process sensors available Different anti-corrosion treatments available See table for material selection Single phase or 3 phase 208 volt up to 600 volt	OVS 6 Disk heater over the side lower tank installation Available round, square or rectangular Large surface area dissipating uniform heat Stabilizing bracket inside and outside of tank Available with integrated control system for precise temperature ready High limit and process sensors available Different anti-corrosion treatments available See table for material selection Single phase or 3 phase 208 volt up to 600 volt
OVS 1R 3 leg over the side installation wall mounted Replaceable heaters Stabilizing bracket inside and outside of tank Available with integrated control system for precise temperature ready High limit and process sensors available Different anti-corrosion treatments available See table for material selection Single phase or 3 phase 208 volt up to 600 volt	OVS 2R 3 leg over the side lower tank installation Replaceable heaters Stabilizing bracket inside and outside of tank Available with integrated control system for precise temperature ready High limit and process sensors available Different anti-corrosion treatments available See table for material selection Single phase or 3 phase 208 volt up to 600 volt
